TELEBOX DATA ACTASSI/KEYST ANGLED WT
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Assembly arrangement | Central cover plate |
Utilization | Mounting cover data connector |
Support ring | Yes |
With dust cover | Yes |
With hinged lid | Yes |
Outlet direction | Inclined |
Imprintable label | With indication plate |
With imprint | No |
Mounting method | Built-in |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Anti-bacterial treatment | No |
Surface protection | Untreated |
Surface finishing | Matt |
Colour | White |
RAL-number (similar) | 9003 |
Transparent | No |
Type of fastening | Engage (snap) |
With buses/couplings | No |
With strain relief | No |
Shielded buses | No |
Shielded housing | No |
Luster terminal | No |
With lighting | No |
Suitable for degree of protection (IP) | IP20 |

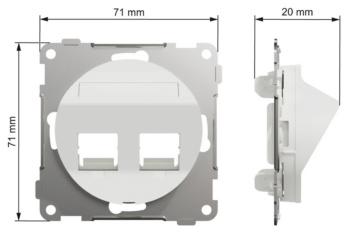

Device width | 71 mm |
Device height | 71 mm |
Device depth | 20 mm |
E-number Finland | 7204236 |
Brand | SCHNEIDER ELECTRIC |
