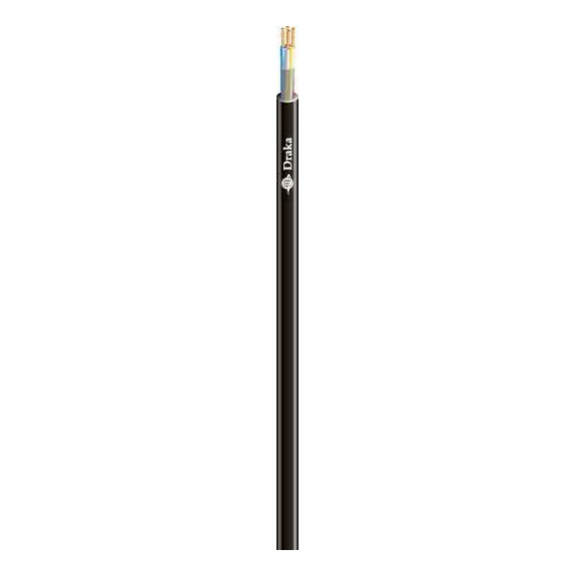

TELEPHONE CABLE MHBU 1X4X0,8 FECU PK500
DRAKA
Art.-no. WS0256107
EAN 6410002561074
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
Conductor material | Other |
Conductor surface | Copper-plated |
Diameter conductor | 0.8 mm |
Conductor category | Class 1 = solid |
Number of cores | 4 |
Number of stranding elements | 1 |
Stranding element | Quad |
Material core insulation | Polyolefin |
Specification core insulation | Polyethylene (PE) |
Core identification according to HD 308 S2 | No |
Core identification | Colour |
Screen over stranding element | None |
Stranding | Bundle |
Screen over stranding | Foil |
Longitudinal water blocking cable | No |
Radial water blocking cable | Yes |
Suitable for underground installation | No |
Protective sheath | Al/PE |
Material outer sheath | Polyolefin |
Specification material outer sheath | Polyethylene (PE) |
Colour outer sheath | Black |
Armouring/reinforcement | None |
Cable geometry | Round |
Reaction-to-fire according to EN 13501-6: Class | None |
Reaction-to-fire according to EN 13501-6: Smoke production | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
Reaction-to-fire according to EN 13501-6: Acidity | None |
Low smoke according to EN IEC 61034-2 | No |
Oil resistant according to EN IEC 60811-404 | No |
Outer diameter approx. | 8.2 mm |
Min. permitted bending radius, moving application/free movement | 125 mm |
Min. permitted bending radius, stationary application/permanent installation | 60 mm |
Permitted cable outer temperature during assembling/handling | -20-60 °C |
Permitted cable outer temperature after assembling without vibration | -45-70 °C |
Category | 3 |
UV resistant | Yes |
Certified for shipboard application | No |
Suitable as telephone cable | Yes |
Suitable as computer data cable | Yes |
Suitable as signalling cable | Yes |
Weight | 64 kg/km |
E-number Finland | 0256107 |
Brand | DRAKA |
