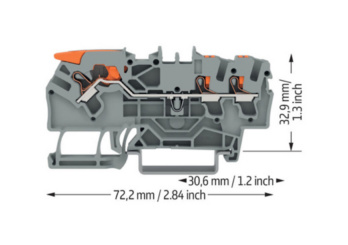

TERMINAL BLOCK 3P 0,25-2,5MM2 2102-5301
WAGO
Art.-no. WS1927427
EAN 4055143741927
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve | 0.75-2.5 mm² |
Connectable conductor cross section solid-core | 0.75-4 mm² |
Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
Rated current In | 24 A |
Rated voltage | 800 V |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Number of levels | 1 |
Number of clamp positions per level | 3 |
Mounting method | DIN rail (top hat rail) 35 mm |
Material insulation body | Thermoplastic |
Operating temperature | 105-105 °C |
Explosion-tested version 'Ex e' | No |
Closing plate required | Yes |
Colour | Grey |
Internally connected stages | No |
E-number Finland | 1927427 |
Brand | WAGO |
