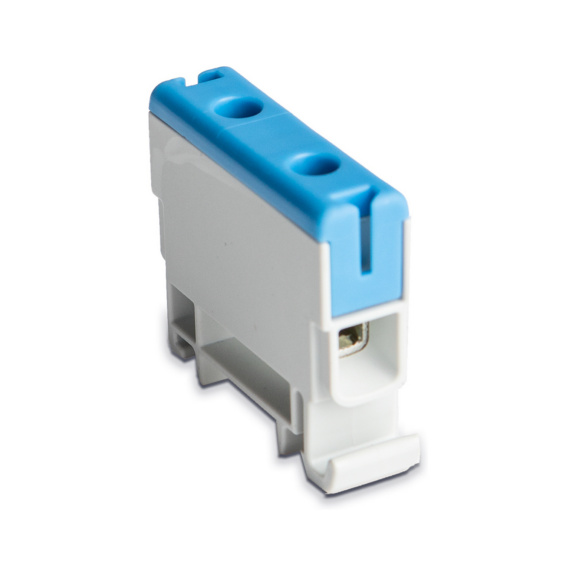

Terminal block Ensto Clampo pro
TERMINAL KE60.2 BL CLAMPO PRO
ENSTO
Art.-no. WS1913147
EAN 6438100500900
With registration you can access the Würth Elektro online shop selection.
Ensto Clampo Pro is a comprehensive universal terminal block for 2.5-240 mm² aluminium and copper conductors.
Datasheets(X)
 | |
Connectable conductor cross section fine-strand without cable end sleeve | 10-10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve | 1.5-10 mm² |
Connectable conductor cross section solid-core | 1.5-16 mm² |
Connectable conductor cross section multi-wired | 1.5-16 mm² |
Rated current In | 82 A |
Rated voltage | 800 V |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Number of levels | 1 |
Number of clamp positions per level | 2 |
Mounting method | DIN rail (top hat rail) 35 mm |
Material insulation body | Thermoplastic |
Operating temperature | -5-80 °C |
Explosion-tested version 'Ex e' | No |
Colour | Blue |
E-number Finland | 1913147 |
Brand | ENSTO |
