Contactor TeSys D

Name: Contactor TeSys D
Brand: SCHNEIDER ELECTRIC
SKU: WS3860070

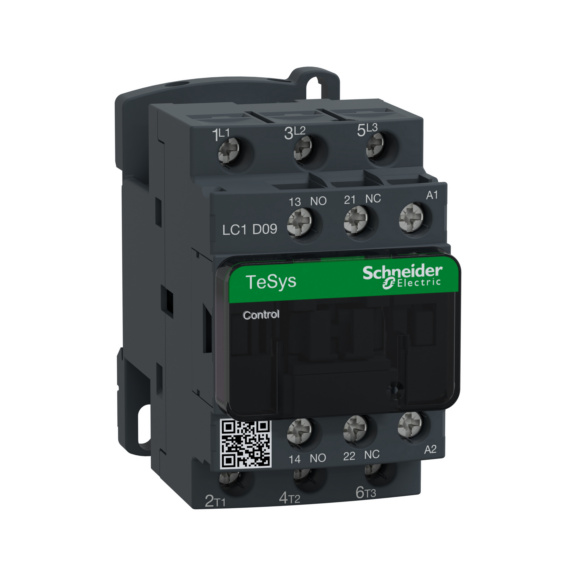

TESYS 9A/AC3 230VAC LC1D09P7
SCHNEIDER ELECTRIC

Art.-no. WS3860070

EAN 3389110348903

All versions

Specification

TeSys D are not only visually modern but also quick and easy to install. The devices are compact (width 45 mm < 38 A and 55 mm 40–65 A) and they comply with international standards. Contactors sized 40–65 A have been equipped with an innovative patented EverLink technology that ensures a long useful life and maintenance-free (no need to tighten) use. Versatile NC/NO auxiliary connectors available for multiple models.

Ideal model for all applications. Motor control, reversal control, star-delta starting, control of resistive loads, lighting control, control of electric car charging stations, etc.

Technical information

Rated control supply voltage AC 50 Hz	230-230 V
Rated control supply voltage AC 60 Hz	230-230 V
Voltage type for actuating	AC
Rated operation current Ie at AC-1, 400 V	25 A
Rated operation current Ie at AC-3, 400 V	9 A
Rated operation power at AC-3, 400 V	4 kW
Rated operation current Ie at AC-4, 400 V	6 A
Rated operation power at AC-4, 400 V	2.2 kW
Modular version	No
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Type of electrical connection of main circuit	Screw connection
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
E-number Finland	3860070
Brand	SCHNEIDER ELECTRIC

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Additional accessory:

Product

Description

Quantity

Price
/packing unit

Motor protection switch TeSys GV2

MOTOR CIRCUITBREAKER 6-10A GV2ME14

SCHNEIDER ELECTRIC

Art.-no. WS3760038

x 1

Auxiliary contactor TeSys

AUXILIARY CONTACT TESYS 2NO+2NC LADN22

SCHNEIDER ELECTRIC

Art.-no. WS3860036

x 1

Time delay block TeSys

TIME DELAY UNIT TESYS 1S+1A LADR0

SCHNEIDER ELECTRIC

Art.-no. WS3860039

x 1

Time delay block TeSys

TIME DELAY UNIT LADT0 TESYS

SCHNEIDER ELECTRIC

Art.-no. WS3860043

x 1

Mechanical interlock TeSys LAD9V2

LOCKING PIECE TESYS D09-D38 LAD9V2

SCHNEIDER ELECTRIC

Art.-no. WS3860597

x 1
