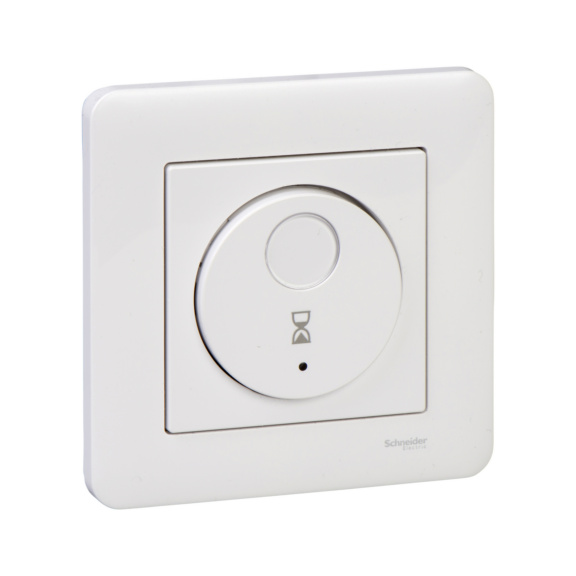

Electronic countdown timer, 2-pole, 10A Exxact
TIMER 15min-8h 2-POLE WT EXX
SCHNEIDER ELECTRIC
Art.-no. WS2609040P
EAN 3606480333125
With registration you can access the Würth Elektro online shop selection.
- Electronic timer 10A.
- Adjustable delay - 15, 30min, 1, 2, 4 or 8 hours.
- Neutral wire required.
- Can control both AC and DC loads.
- LED indicator turns red when the timer is active.
- In installations with a recessed device-mounting box, the covered model can be switched to IP44 grade using sealing pack, and in surface installations, using IP44 surface device-mounting box.
Datasheets(X)
Assembly arrangement | Basic element with central cover plate |
Model | Electronic |
Material | Plastic |
Material quality | Thermoplastic |
Surface protection | Untreated |
Surface finishing | Glossy |
Colour | White |
RAL-number (similar) | 9003 |
Transparent | No |
Shortest switching interval | 15 min |
Random generator | No |
Nominal voltage | 230 V |
Frequency | 50-50 Hz |
Astro program | No |
Substation input | No |
Rated current | 10 A |
With brightness sensor connection | No |
Max. power | 2300 W |
Built-in depth | 32 mm |
Min. depth of built-in installation box | 24 mm |
E-number Finland | 2609040 |
Brand | SCHNEIDER ELECTRIC |
