TIMER IP20 1610011 THEBEN
THEBEN
Art.-no. WS2607069
EAN 4003468161371
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Mounting method | DIN rail |
Number of channels | 1 |
Supply voltage | 230-230 V |
Voltage type (supply voltage) | AC |
Frequency supply voltage | 50-50 Hz |
60 min program | No |
24 h program | Yes |
Weekly program | No |
Mains synchronous | Yes |
Program shift divide 1 | 15 min |
Automatic switching summer-/winter time | No |
Suitable for manual operation | Yes |
Switching preselection | Yes |
Nominal switching current at 250 V AC | 16 A |
Max. switching power LED | 180 W |
Potential free switch contact | Yes |
Degree of protection (IP) | IP20 |
Width in number of modular spacings | 3 |

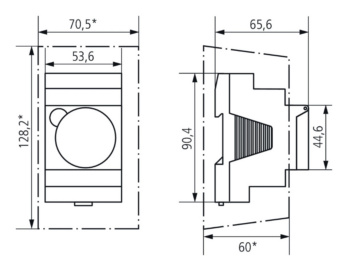

Width | 52.5 mm |
Height | 90 mm |
Depth | 60 mm |
E-number Finland | 2607069 |
Brand | THEBEN |
