Ground light IP44 MINI LED GROUND SPOT additional set 7470-000
VALAISIN MINI LED GROUND SPOT 7470-000
KONSTSMIDE
Art.-no. WS4128351
EAN 7318307470000
With registration you can access the Würth Elektro online shop selection.
Mini LED Ground Spot additional domed light set, including required connectors and cables (LED driver not included). Can be used as an add-on to the 7467-000 series or with the 7446-000 LED driver on its own.
Datasheets(X)
 | |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 3 |
Housing material | Plastic |
Housing colour | Chrome |
Material cover | Glass transparent |
Nominal voltage | 12-12 V |
Light sharing | Symmetric |
Degree of protection (IP) | IP44 |
Protection class | III |
Max. system power | 2 W |
Rated luminous flux according to IEC 62722-2-1 | 12 lm |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 70-79 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |

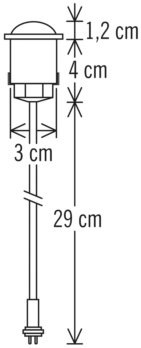

Width | 30 mm |
Height/depth | 50 mm |
Length | 30 mm |
E-number Finland | 4128351 |
Brand | KONSTSMIDE |
