Closet IP66, Fe Spacial S3D

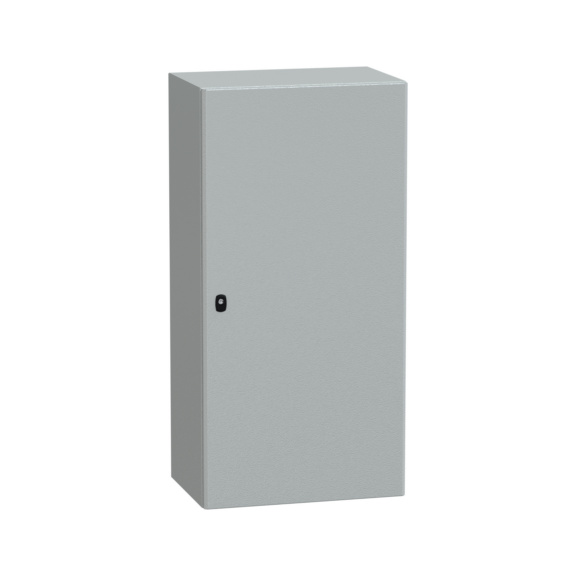

WALL CABINET FE 1200X600X400 IP66
SCHNEIDER ELECTRIC
Art.-no. WS3448036
EAN 3606480159909
With registration you can access the Würth Elektro online shop selection.
- Single-piece folded and welded frame, double-thick grooved front profile. Smooth back panel.
- Protection rating: Single-door models IP 66, two-door models IP 55.
- Light and durable closet, folded lattice-structure from steel sheets.
- Resistance against external mechanical impact: Solid-door models IK 10, glass-door models IK 08.
- Paint: grey RAL 7035.
- Certifications: EN 62208 (LCIE), UL, CUL, BV, DNV, LR, GL, ATEX (modified closet).
- Human safety: 2 welded earthing connections (door and frame)
18 month warranty
Datasheets(X)
 | |

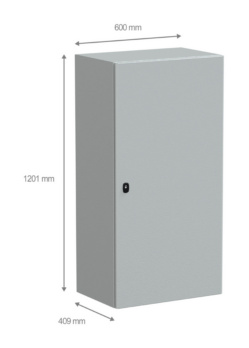

Width | 600 mm |
Height | 1200 mm |
Depth | 400 mm |
Material | Steel |
Material quality | Other |
Surface finishing | Powder coating |
Colour | Grey |
RAL-number | 7035 |
Freestanding | No |
Floor standing wall model | Yes |
Suitable for wall mounting | Yes |
Corner model | No |
Intermediate mounting | No |
Couplable | No |
With mounting plate | Yes |
Mounting plate depth-adjustable | No |
Suitable for wall built-in | No |
Pole fastening | Yes |
Number of doors | 1 |
Number of locks | 1 |
Suitable for metrical mounting | Yes |
Pitched roof | No |
EMC-version | No |
With glazed door | No |
With ventilation door | No |
With rear door | No |
Impact strength | IK10 |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | 4X |
Max. permitted load of the enclosure according to IEC 62208 | 250 N |
Max. permitted load of the door(s) according to IEC 62208 | 50 N |
Max. permitted load of the mounting plate according to IEC 62208 | 250 N |
E-number Finland | 3448036 |
Brand | SCHNEIDER ELECTRIC |
