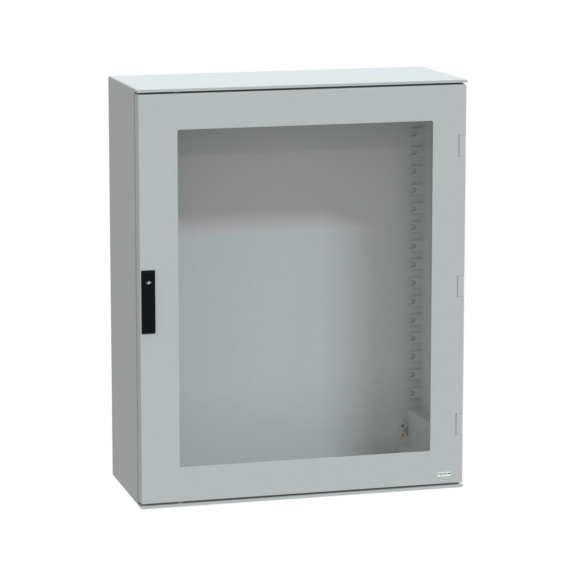

Plastic cabinet Thala PLM
WALL CABINET THALASSA PLM 1059X825X350
SCHNEIDER ELECTRIC
Art.-no. WS3447878
EAN 3606480776427
With registration you can access the Würth Elektro online shop selection.
The body and door of the Thala cabinet are made of hot-pressed fibreglass-reinforced polyester. Total insulation is suitable for class II installations, ingress protection IP66. Suitable for indoor and outdoor use.
Datasheets(X)
 | |

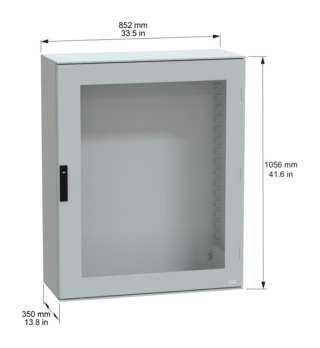

Width | 852 mm |
Height | 1056 mm |
Depth | 350 mm |
Material | Plastic |
Material quality | Polyester |
Surface finishing | Untreated |
Colour | Grey |
RAL-number | 7035 |
Freestanding | No |
Suitable for wall mounting | Yes |
Corner model | No |
Intermediate mounting | No |
Couplable | No |
With mounting plate | No |
Mounting plate depth-adjustable | Yes |
Suitable for wall built-in | Yes |
Pole fastening | Yes |
Number of doors | 1 |
Number of locks | 1 |
Pitched roof | No |
EMC-version | No |
With glazed door | Yes |
With ventilation door | No |
With rear door | No |
Impact strength | IK08 |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | 4X |
Max. permitted load of the enclosure according to IEC 62208 | 1306 N |
Max. permitted load of the mounting plate according to IEC 62208 | 1048 N |
E-number Finland | 3447878 |
Brand | SCHNEIDER ELECTRIC |
