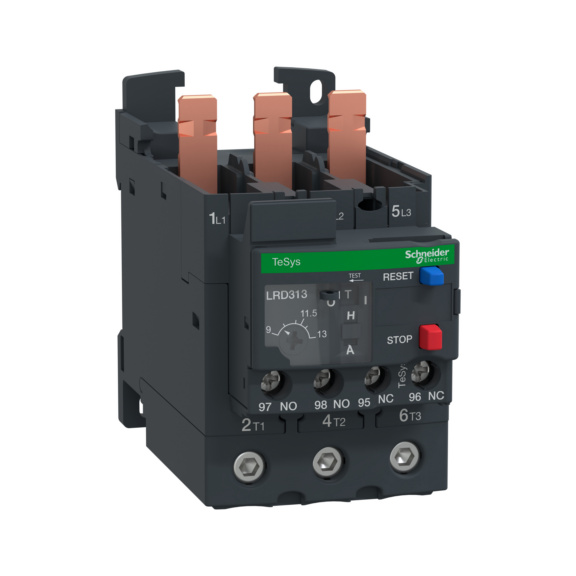

LRD thermal relays prevent overloading and premature ageing of the motor. The thermal relays are supplied with manual setting acknowledgement, but they can also, if needed, be changed to automatic setting acknowledgement. The thermal relay can easily be connected to TeSys D contactors, creating a compact starter solution.
- Manual and automatic resetting
- Sealable flap for lay-out in front
- Control pre-connection kit between the contactor and the thermal relay
- Separate installation kit
- Electrical remote acknowledgment
- Direct connection to the contactor poles. Width 45mm up to 18.5 kW and 55mm up to 30kW.
- Connectors: Screw / tunnel terminal EverLink-terminal 55mm frame size (LRD3), spring power terminal 45mm frame size (LRD**3)
- Turn on time class: 10 A or 20.
