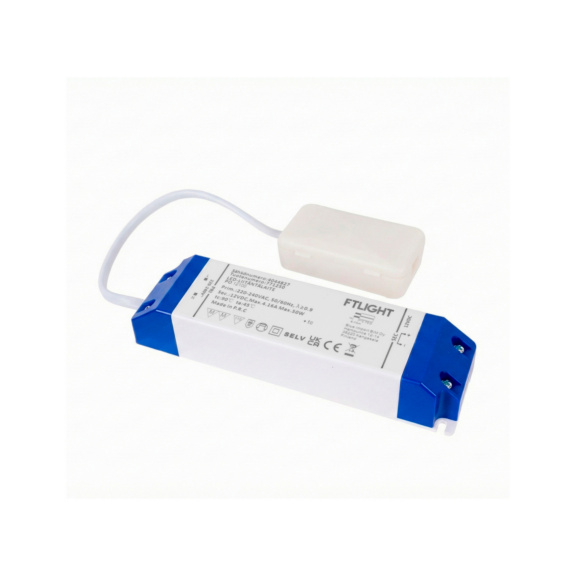

ELECTRONIC BALLAST 50W 12V IP20
FTLIGHT
Art.-no. WS4044827
EAN 6418536038758
With registration you can access the Würth Elektro online shop selection.
5 years warranty
Datasheets(X)
Model | Static |
Suitable for outdoor use | No |
Dimmable | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming D4i | No |
Dimming DALI | No |
Dimming DALI-2 | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming LineSwitch | No |
Dimming mains voltage modulation | No |
Dimming manufacturer's proprietary system | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming potentiometer (integrated) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming with push-button | No |
Dimming Zigbee | No |
Constant light output (CLO) | No |
Housing | Plastic housing |
Suitable for constant current | No |
Suitable for constant voltage | Yes |
Output voltage | 12-12 V |
Output current | 4160-4160 mA |
Suitable for DC-voltage (primary side) | No |
Output power | 50-50 W |
Input voltage | 220-240 V |
Power consumption | 50 W |
Frequency input voltage | 50-60 Hz |
Efficiency | 0.9 % |
Independently operating | No |
PWM modulation | No |
Overload protection | Yes |
Emergency power supply system | None |
Overtemperature protection | No |
Ambient temperature | 0-45 °C |
Degree of protection (IP) | IP20 |
Protection class according to IEC 61140 | II |
Driver lifetime | 50000 h |
Length | 149 mm |
Width | 45 mm |
Height | 27 mm |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
Compatible with Casambi | No |
IFTTT support available | No |
E-number Finland | 4044827 |
Brand | FTLIGHT |
