Suitable for wall mounting

Yes

Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for clamp-mounting

No

With mounting material

Yes

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Lamp holder

Other

Housing material

Plastic

Surface protection housing

Untreated

Housing colour

White

Material cover

Plastic, opal

Type of grid

None

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

0.06-0.06 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Dimmable

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming DSI

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming potentiometer (integrated)

No

Dimming RF

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Diffuser lens/optic/panel

Light distribution

Symmetric

Beam angle

Open beam/diffuse

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015

C

Containing product according to 2019/2020/EU

No

Rated lifetime L70/B50 at 25 °C

100000 h

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

90 %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

5 %

Max. number of luminaires per miniature circuit breaker C10 (MCB)

30

Max. number of luminaires per miniature circuit breaker B16 (MCB)

40

Max. number of luminaires per miniature circuit breaker C16 (MCB)

45

Impact strength

IK08

Protection class according to IEC 61140

II

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

No

Emergency power supply system

None

Rated ambient temperature according to IEC 62722-2-1

25-25 °C

Suitable for emergency lighting

Yes

Emergency function monitoring system

None

With switch

No

With presence detector

No

With movement sensor

No

Movement sensor/presence detector technology

Other

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Luminaire efficacy

130-140 lm/W

Max. system power

13 W

Rated luminous flux according to IEC 62722-2- 1

500-1850 lm

Colour of light

White

Colour temperature

3000-4000 K

Flickering value Pst LM

1

Colour rendering index CRI

80-89

Power factor

0.9

Stroboscope effect value SVM

0.4

Constant light output (CLO)

No

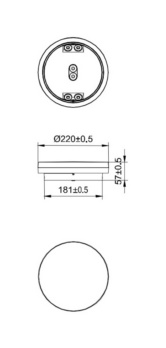

Height/depth

57 mm

Outer diameter

220 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

3

Conductor cross section

0.75 mm²

Total harmonic distortion (THD)

20 %

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Connectable conductor cross section

1-2.5 mm²

Unified Glare Ratio (UGR)

30

Colour of light adjustable

Positions

Luminous flux adjustable

Positions

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Ball-proof according to DIN 18032-3

No

Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)

Yes

E-number Finland

4251964

Brand

PHILIPS
