Motion detector ELKO One
MOTION SENSOR 160 PIR 10A BK ELKO ONE
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
The versatile 10 A integrated motion detector with a push-button allows you to manually switch on the lights, for example when the twilight switch condition is not met. An excellent solution for spaces where both automatic and manual control are needed. The sensor's 160° horizontal viewing angle provides wide coverage, and a primary/secondary operating mode. Possibility to connect multiple sensors to cover larger areas.
Datasheets(X)
 | |
Model | Movement sensor |
Sensor type | Passive infrared |
With DALI interface | No |
Constant light control | No |
HVAC-control | No |
Forced switch on | Yes |
Forced switch off | Yes |
Animal zone | No |
Creep-under protection | No |
Networkable | No |
Scan angle | 160 ° |
Optimum mounting height | 1 m |
Staircase light controller | Yes |
Bridging switch | No |
Max. reach sideways | 6 m |
Max. presence range | 86 m² |
Max. reach frontally | 8 m |
Suitable for wireless transmission | No |
Remote operation | No |
With remote control | No |
Response value sensitivity adjustable | No |
Response value luminosity adjustable | Yes |
With signal unit | No |
Teach-function for response value luminosity | No |
Suitable for ceiling mounting | No |
Suitable for wall mounting | Yes |
Dim function with dimmer basic element | No |
Mounting method | Built-in |
Connection type | Screwed terminal |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Surface protection | Untreated |
Surface finishing | Matt |
Anti-bacterial treatment | No |
Colour | Black |
RAL-number (similar) | 9005 |
Transparent | No |
Degree of protection (IP) | IP20 |
Voltage type | AC |
Frequency | 50-50 Hz |
Nominal voltage | 230 V |
Min. switch-on time | 1 s |
Max. duty cycle | 30 min |
Switch-off delay | 1800 s |
Switching-on delay | 0 s |
Detection angle horizontal | 160-160 ° |
Pivoting range sensor, horizontal | 0-0 ° |
Pivoting range sensor, vertical | 0-0 ° |
Response value luminosity | 5-500 lx |
Max. switching power | 2200 W |
Max. switching power LED | 200 W |
Suitable for C-load | Yes |
Temperature | 5-35 °C |
Number of switching zones | 13 |
Max. starting current | 10 A |
Substation input | Yes |
With alarm function | No |

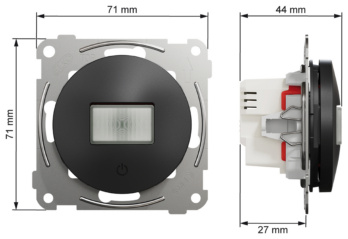

Width | 84 mm |
Height | 84 mm |
Depth | 44 mm |
Built-in width | 55 mm |
Built-in depth | 27 mm |
Built-in length | 55 mm |
Built-in diameter | 55 mm |
Compatible with Apple HomeKit | No |
Min. depth of built-in installation box | 27 mm |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 2610205 |
Brand | SCHNEIDER ELECTRIC |
