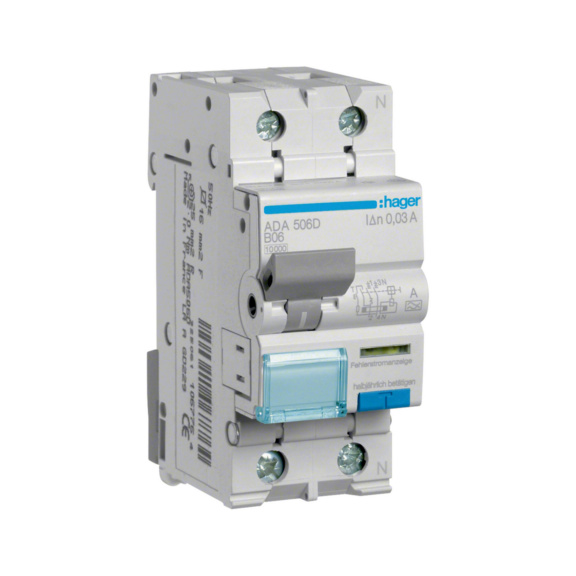

Residual current breaker with overcurrent ADA 30mA Hager
RCBO ADA506D 30MA A/2X6A B-C. 10KA
HAGER
With registration you can access the Würth Elektro online shop selection.
Residual current breaker with voltage non-dependant electromechanical fault current function. Trip sensitivity 30mA.
24 month warranty
Datasheets(X)
Number of poles (total) | 2 |
Number of protected poles | 1 |
Rated voltage | 240 V |
Rated insulation voltage Ui | 500 V |
Rated impulse withstand voltage Uimp | 4 kV |
Rated current | 6 A |
Rated fault current | 0.03 A |
Leakage current type | A |
Current limiting class | 3 |
Rated short-circuit breaking capacity according to IEC 60947-2 | 10 kA |
Rated short-circuit breaking capacity Icn according to EN 61009-1 | 10 kA |
Disconnection characteristic | Undelayed |
Surge current capacity | 0.25 kA |
Voltage type | AC |
Frequency | 50 Hz |
Release characteristic | B |
Concurrently switching neutral conductor | Yes |
With interlocking device | Yes |
Overvoltage category | 3 |
Pollution degree | 2 |
Ambient temperature during operating | -25-40 °C |
Width in number of modular spacings | 2 |
Built-in depth | 68 mm |
Anti-nuisance tripping version | No |
Connectable conductor cross section solid-core | 1-25 mm² |
Connectable conductor cross section multi-wired | 1-16 mm² |
E-number Finland | 3246119 |
Brand | HAGER |
