Rivet nut

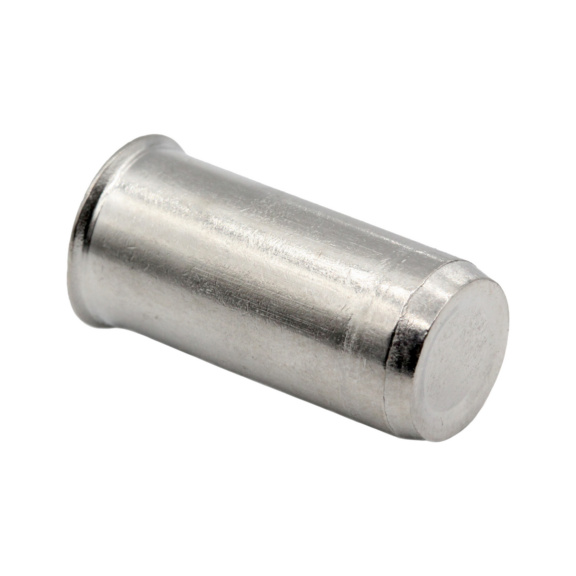

Rivet nut, round, reduced head, closed, A2 stainless steel
RIVETNUT A2 ROUND RED.HEAD CLOSE M8X23,5
With registration you can access the Würth Elektro online shop selection.
Simple and ideal when the place of use is
a thin material where threads are needed.
Round:
The most common when working on a steel sheet,
with normal loads
Reduced head:
Used in a sheet when what is needed is a
joint level with the surface. Separate
countersinking is not needed.
Closed model:
Provides liquid-tight fastening and protects
against dirt and corrosion, important when the product
is painted and the threads are not protected
Datasheets(X)
 | |
Thread type x nominal diameter | M8 |
Length | 23.5 mm |
Head diameter | 12 mm |
Drill hole diameter | 11.1 mm |
Assembly force | 12300 N |
Tension force | 36300 N |
Max. tightening torque | 15.6 Nm |
Design | Closed |
Material | Stainless steel A2 |
