Plastic rivet black TRCR
Plastic rivet, Nylon 6, Polycarbonate PC, black
SNAP RIVET PA TRCR40-21 BK
With registration you can access the Würth Elektro online shop selection.
Plastic rivets - for electronics assembly and applications.
Datasheets(X)
 | |

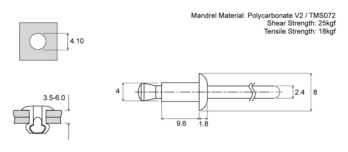

Nominal diameter x length | 4.0 x 9.6 mm |
Min./max. grip range | 3.5-6.5 mm |
Head diameter | 8.0 mm |
Head height | 1.8 mm |
Nominal diameter | 4.0 mm |
Min. operating temperature | -40 °C |
Max. operating temperature | +65 °C |
Length | 9.6 mm |
Diameter of hole | 4.1 mm |
Mandrel diameter | 2.4 mm |
Shear-fracture load | 245.17 N |
Tensile fracture load | 176.52 N |
Material of sleeve | Nylon (polyamide) |
Material of mandrel | PC – Polycarbonate |
Min./max. operating temperature | -40 to +65 °C |
Colour | Black |
