Plug-in connector WINSTA MIDI

Name: Plug-in connector WINSTA MIDI
Brand: WAGO
SKU: WS1923403

Plug connector female
SOCKET 5-P. FEMALE DALI BL 770-1105 WAGO
WAGO

Art.-no. WS1923403

EAN 4044918252706

All versions

Similar products

Plug-in connector WINSTA MIDI

Art.-no. WS1923403

Quantity

x 50

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

The WINSTA plug connection system consists of plug connectors, branch connectors, patch cables, and connection cases. The products provide quick and easy, comprehensive solutions for power supply and lighting control. WINSTA patch cables are machine-made, with spring-technology connectors ensuring maintenance-free solutions throughout operative life. The lock system ensures a fixed, reliable installation. After finishing the WINSTA plug connection system installation, the assembly can easily be test measured through the testing apertures. The WINSTA plug connection system’s benefits are speedy initial installation at the project execution phase and transformability of electricity during building use.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Rated voltage	400 V
Rated current	25 A
Number of poles	5
Degree of protection (IP)	IP20
Connection type	Spring clamp connection
Model	Bus
Connection cross section (fine-strand)	0.5-4 mm²
Connection cross section (solid-core)	0.5-4 mm²
Number of connections per pole	2
Mechanical coding	Yes
Colour coding/contact insert	Blue
Type of locking	Separate
With strain relief	No
Max. continuous temperature resistance contact part	85 °C
Max. continuous temperature resistance strain relief	105 °C
Housing material	Polyamide (PA)
Halogen free	No
Contact material	Other
Surface treatment contacts	Other
Pollution degree	3
Continuity resistance	3 mOhm
Rated surge voltage	6 kV

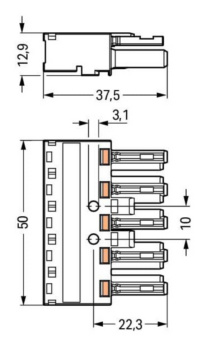

Length	37.5 mm
Height	12.9 mm
Width	50 mm
E-number Finland	1923403
Brand	WAGO

Additional accessory:

Product

Description

Quantity

Price
/packing unit

Lock WINSTA MIDI

LOCKING LEVER WINSTA WT 770-121 WAGO

WAGO

Art.-no. WS1923408

x 25
