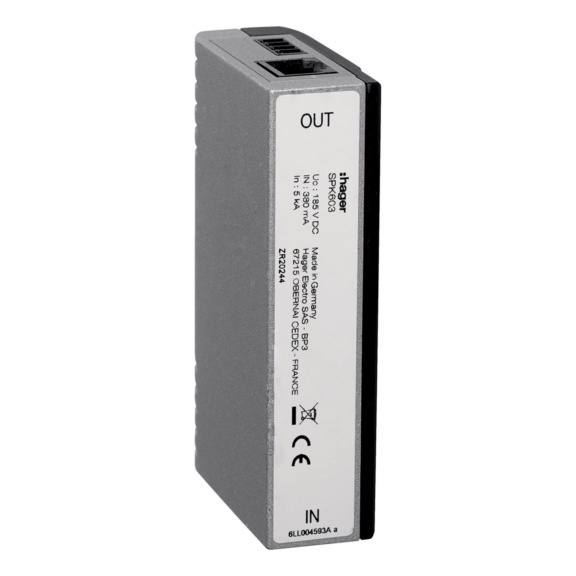

SURGE ARRESTOR SPK603 VDSL
HAGER
-
Show availability at another Center
In order to check the stock in a Würth Elektro branch, please log in.
If you have any questions, please call our service hotline at +358 10 308 4700.
Do you want to register as an Online Shop user? Please go to the registration page.
Exclusively for trade customers
With registration you can access the Würth Elektro online shop selection.
24 month warranty
Product information
Datasheets(X)
Nominal voltage AC | 185-185 V |
Nominal voltage DC | 185-185 V |
Max. continuous voltage AC | 130 V |
Max. continuous voltage DC | 185 V |
Nominal discharge surge current (8/20) | 5 kA |
Voltage protection level core/earth | 250 V |
Limiting frequency | 50 MHz |
Mounting method | DIN rail (top hat rail) 35 mm |
Connection 1 | RJ45 |
Pro-active thermo-control | No |
With remote signalling contact | No |
Signalling at the device | None |
Explosion-tested version | No |
Number of conductors (without earthing) | 2 |
Earthing via | Separate conductor |
Assembly width | 25 mm |
Degree of protection (IP) | IP20 |
E-number Finland | 3246576 |
Brand | HAGER |
