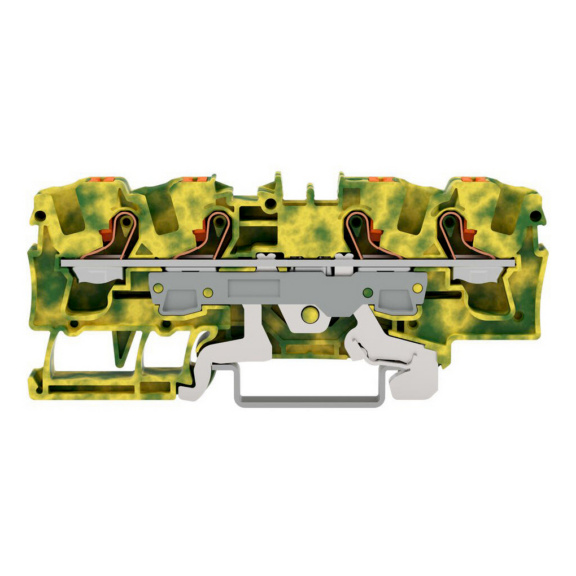

TERMINAL BLOCK 4-PIN YLGN 2206-1407
WAGO
Art.-no. WS1939588
EAN 4066966599244
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Connectable conductor cross section fine-strand without cable end sleeve | 0.5-10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve | 0.5-6 mm² |
Connectable conductor cross section solid-core | 0.5-10 mm² |
Connectable conductor cross section multi-wired | 0.5-10 mm² |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Number of levels | 1 |
Number of clamp positions per level | 4 |
Mounting method | DIN rail (top hat rail) 35 mm |
Material insulation body | Thermoplastic |
Operating temperature | -35-85 °C |

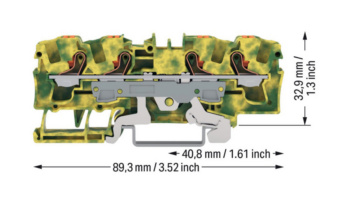

Width | 7.5 mm |
Height | 32.9 mm |
Closing plate required | Yes |
Colour | Green/yellow |
E-number Finland | 1939588 |
Brand | WAGO |
